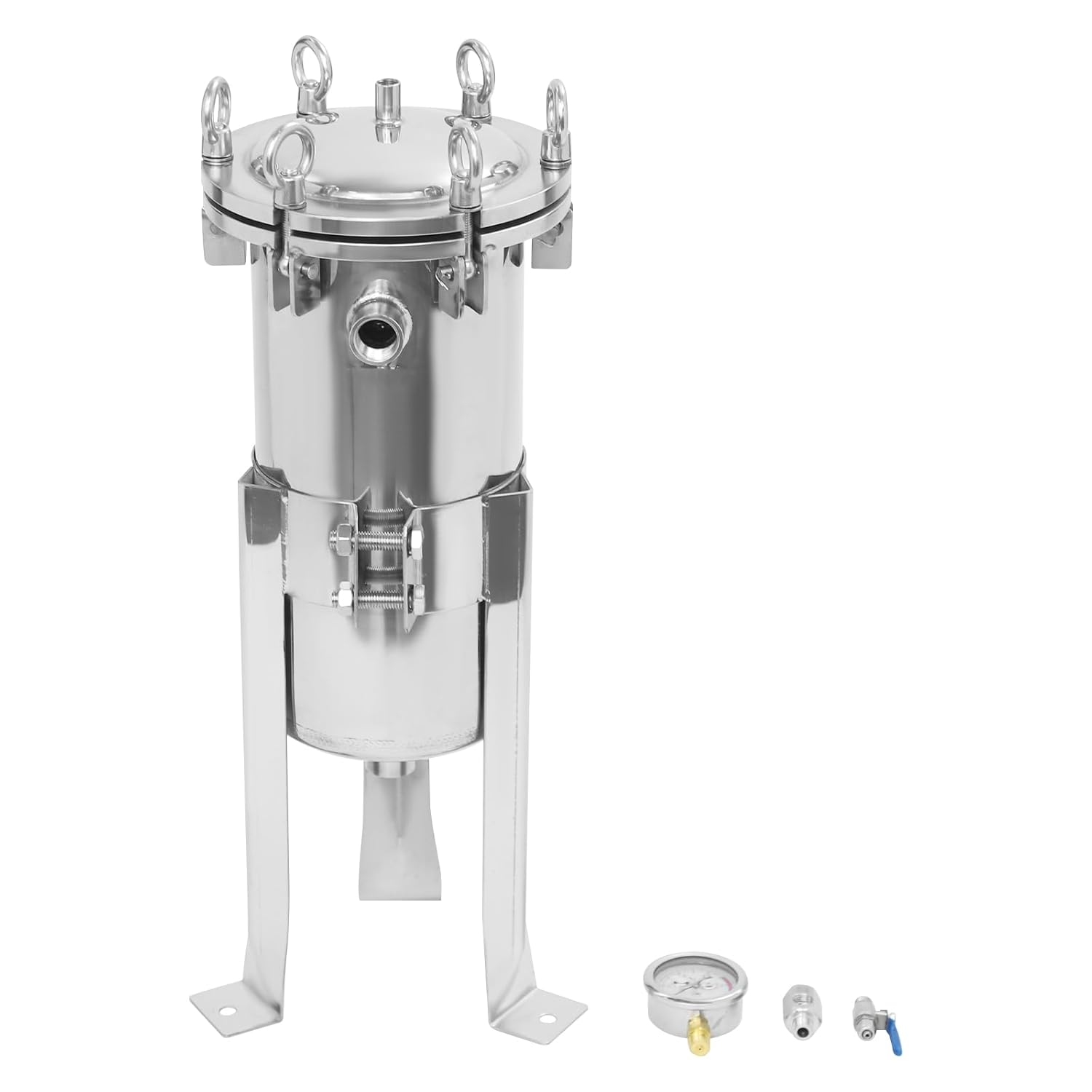

#3 Bag Filter Housing, 304 Stainless Steel Filter Solid-Liquid Separation Tool, Bag Water Filter Purification Equipment 0.97 ft² Filtering Area & 150 PSI Max

Description:This 304 stainless steel bag filter, featuring a robust structural design, finds extensive application across multiple industries, effectively removing particulate from liquids. Equipped with a pressure gauge for convenient monitoring of pressure status, its bag-type filtration structure ensures straightforward and efficient use, providing your task with stable filtration.Details:Exhaust Valve: It releases and exhausts pressure, preventing excessive pressure inside the filter and extending the product's service life.Ring Bolts: They enable easy and quick fastening of the lid, allowing for simple and swift assembly and disassembly.Application:It is suitable for water treatment, ink, oil, beverage industries, and other fields where filtration is required, serving professionals and users needing efficient liquid purification.Specifications:Material: 304 Stainless Steel, MetalMount Type: FloorstandingFiltration Area: 0.09 m²/ 0.97 ft²Reference Flow Rate: 0-6 Ton/0-13227.74 lbs/HInlet/Outlet Female Thread Size: NPT 3/4 inMesh of the Bag: 5 μmPressure Gauge Accuracy: 2.5 LevelAmbient Temperature: -20~80℃/-4~176℉Product Size(D*H): 16.7*65-85 cm/6.57*25.59-33.46 inNet Weight: 9.50 kg/20.94 lbsPackage Included:1* 304 Stainless Steel Bag FilterOther Accessories For UseNotes:1.Please note that when the unit is not in use at temperatures below 32°F, the internal filter media must be drained to prevent damage.2.The filter bag can be reused after cleaning, but replacement is recommended after multiple uses. This product contains only one 5μm filter bag.3.Please note that this product requires only water cleaning. For industries with higher hygiene requirements, cleaning with alcohol (not included) is sufficient.

• 【Premium Material】: The product is made of 304 stainless steel, with a polishing process, which is not easy to deform, ensuring a long-term use.
• 【Efficient Filtration】: It has a high filtration area of 0.97 ft². The liquid will flow out of the filter bag under pressure, and the slag remains on the bag, which could effectively filter precipitates, and particles in the water, thereby achieving the effects of liquid filtration, purification, separation, and recovery.
• 【Considerate Design】: The low probability of side leakage of the filter bag ensures filtration precision. The filter bag is supported by a metal mesh basket to help extend its service life.
• 【Adjustable Design】: You can adjust the overall height of the product by adjusting the support feet to determine the height of the machine from the ground according to the height of the inlet and outlet. With pre-drilled mounting holes on the support feet, you can securely fasten the product to the ground.

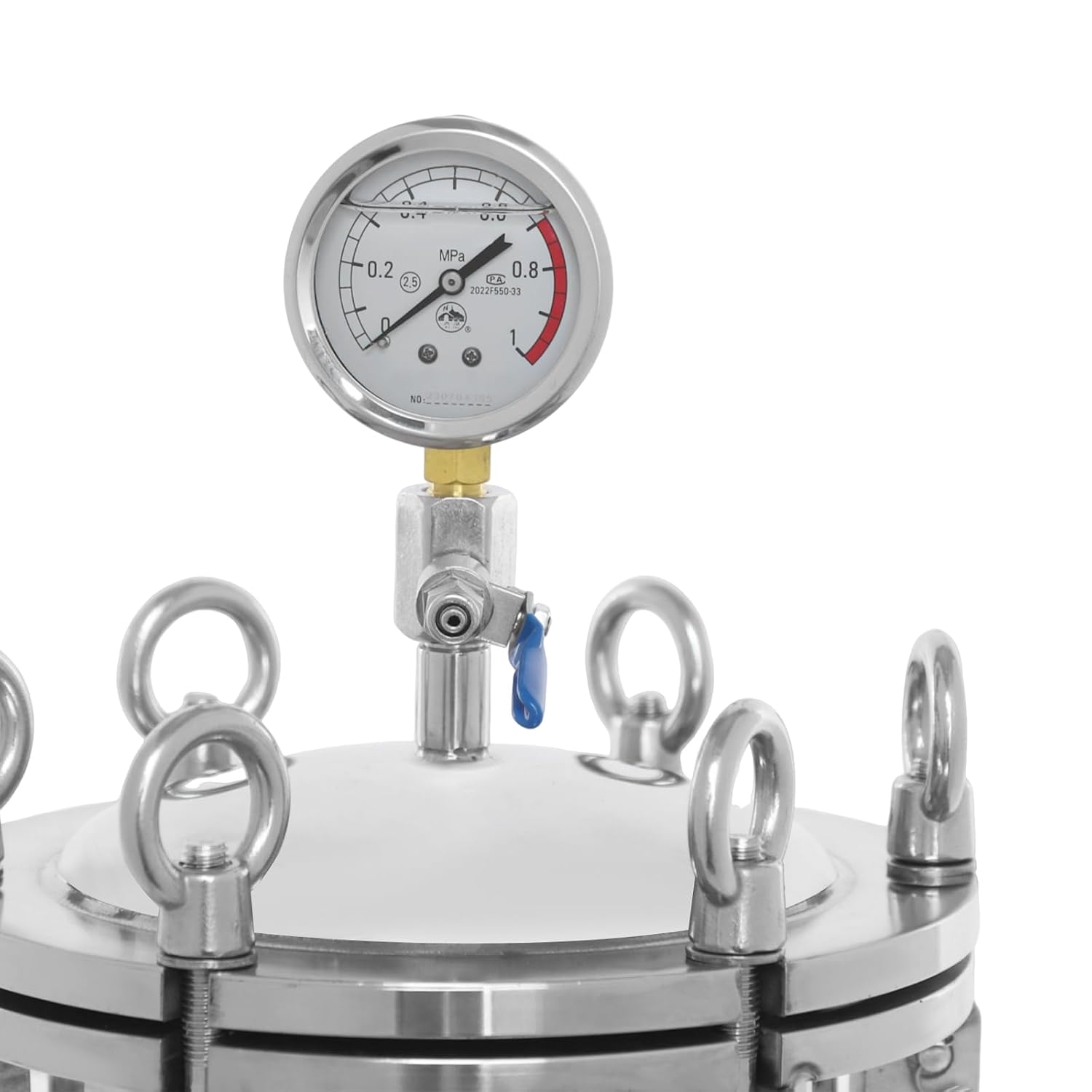

• 【Real-time Monitoring】: This product is equipped with an excellent shock-retardant pressure gauge with 2.5-level accuracy and 1.0MPa measurement range, which is convenient for real-time and accurate monitoring of internal pressure.
