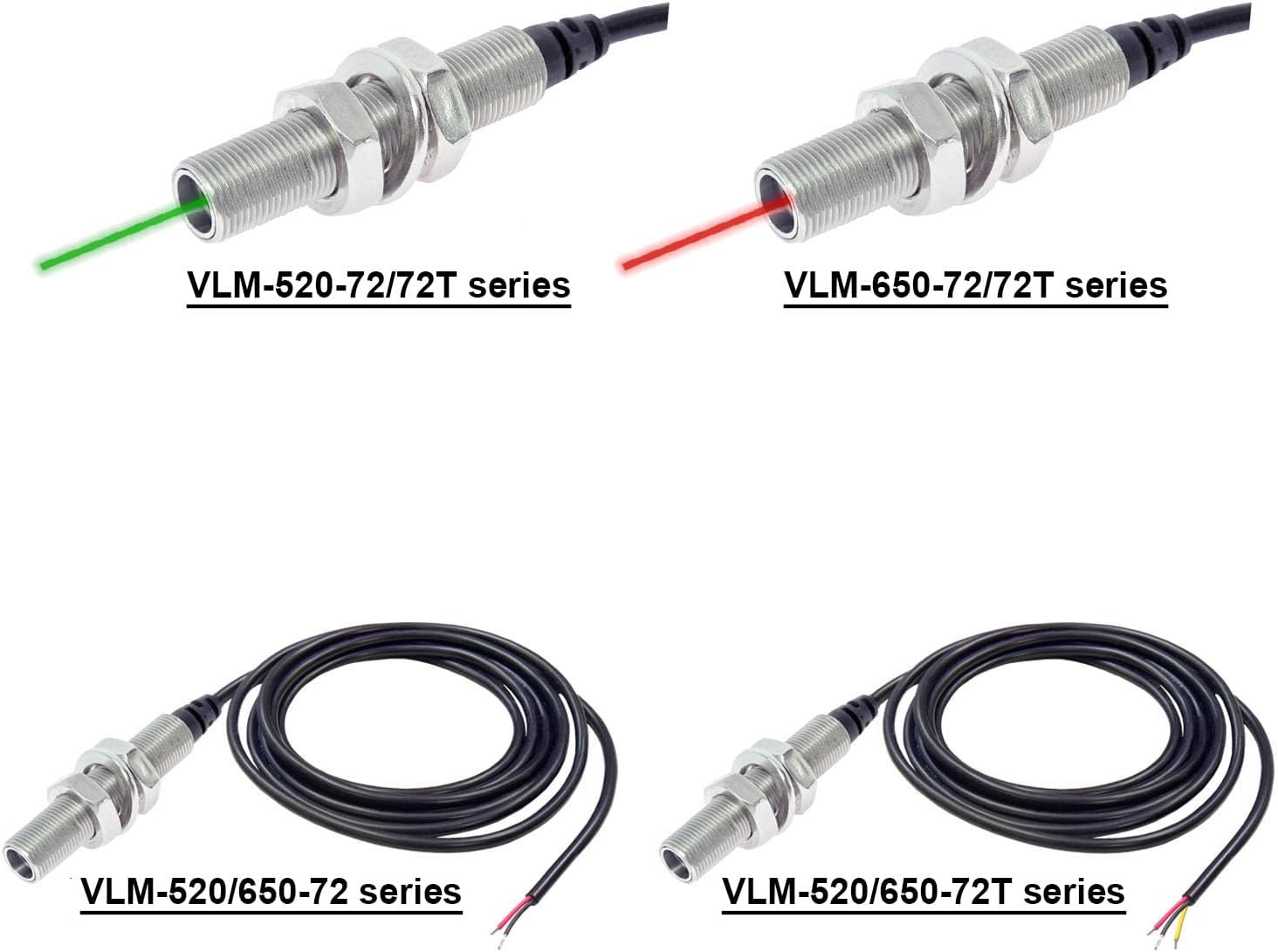

Green Circular Dot Laser Module VLM-520-72 LPT, Class 2, 520 nm, Operating Voltage 10~36 VDC, High-Precision Industrial Laser for Close to Mid-Range Applications (0~5 Meters)

APPLICATIONS: ideal for ． Precision Alignment & Targeting Used in industrial settings for exact positioning of parts or tools, ensuring accuracy in assembly lines and quality control. ． Machine Vision Systems Provides a clear, sharp reference point for cameras and sensors to detect or measure objects. ． Medical Equipment Assists in patient alignment and targeting in diagnostic and therapeutic devices requiring precise laser spots. ． CNC Machining & Milling Helps operators and automated systems align cutting tools and workpieces accurately. ． Measurement Instruments Acts as a reference dot for distance measurement, leveling, or mapping tools.

• HIGH-PRECISION GREEN DOT LASER: VLM-520-72 LPT emits a sharp and stable green circular dot (<3 mm from 0 to 5 m) for precise alignment, positioning, and guidance. Ideal for CNC machining, robotic calibration, and machine vision systems requiring pinpoint accuracy.

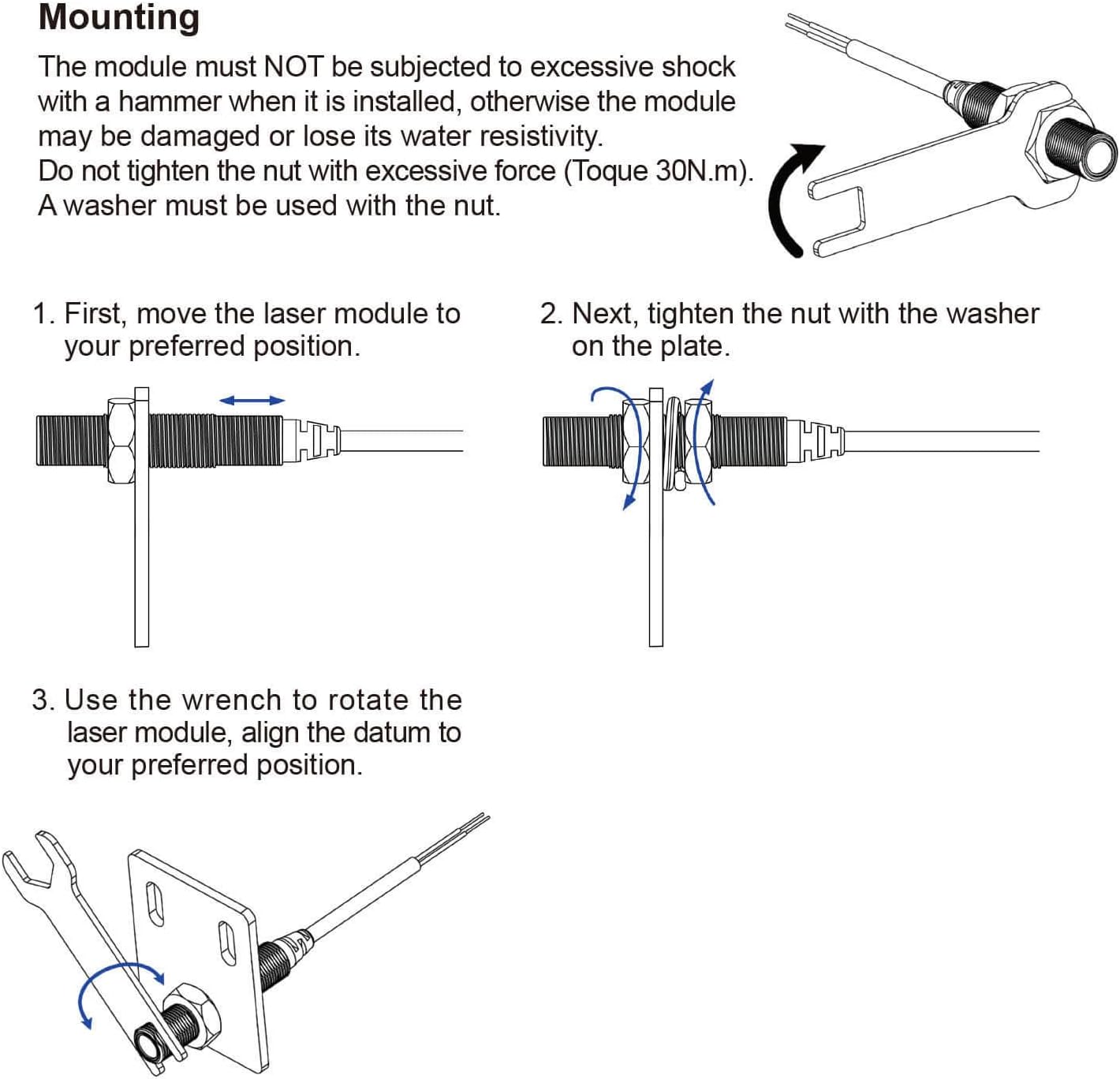

• INDUSTRIAL-GRADE BUILD QUALITY: Constructed with a stainless steel housing (M12 × 68 mm) and a high-precision aspherical glass lens, this laser module is engineered for 10,000+ hours of operation life and exceptional durability in demanding industrial environments.

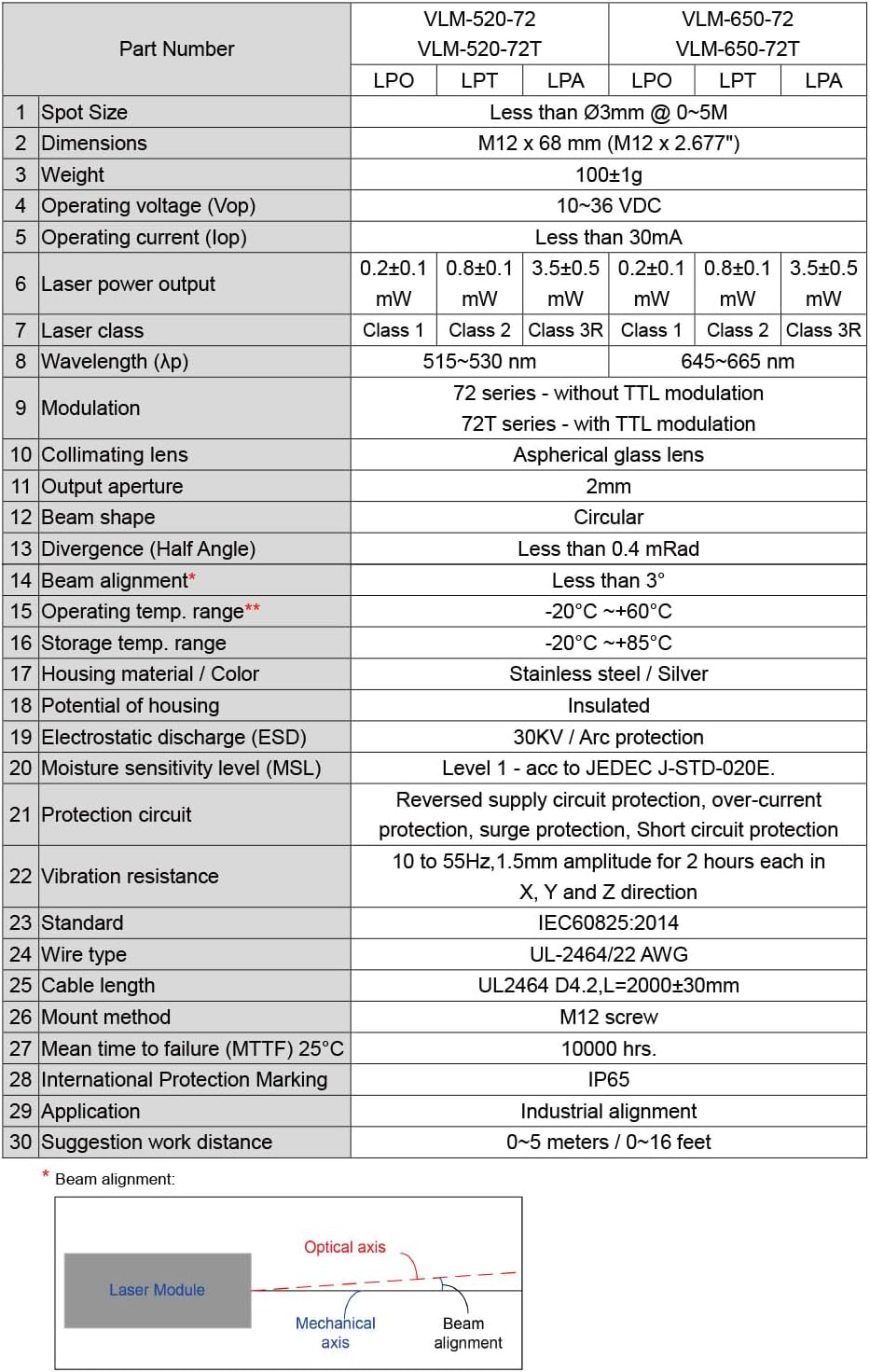

• ENGINEERED PERFORMANCE SPECIFICATIONS: Wavelength: 515~530 nm (Green); Laser Output: Less than 1 mW (Class II / Class 2); Beam Divergence: < 0.4 mRad; Operating Voltage: 10~36 VDC. Built-in protection circuits provide reverse polarity, over-current, surge, and short circuit protection for stable operation.
• RELIABLE UNDER DEMANDING CONDITIONS: Tested for vibration resistance (10~55 Hz, 1.5 mm amplitude) and rated IP68 for dust and moisture protection. Performs reliably within a wide temperature range of -20°C to +60°C, ideal for factory automation, packaging machinery, and optical inspection applications.
• Designed for precision applications across short to mid-range, this laser module offers exceptional accuracy in alignment and positioning for automation, robotics, machine vision and inspection system. Ensuring precise visible calibration and leveling in demanding industrial settings, medical and laboratory targeting, production line alignment, and optical sensing. It is also a laser source for testing, education, and R&D innovation.
• Notice: Our laser modules are NOT laser pens and are NOT intended for general commercial or consumer use like standard laser pointer. They feature NO built-in switch or battery compartment and must be operated with an external power supply or battery holder.
