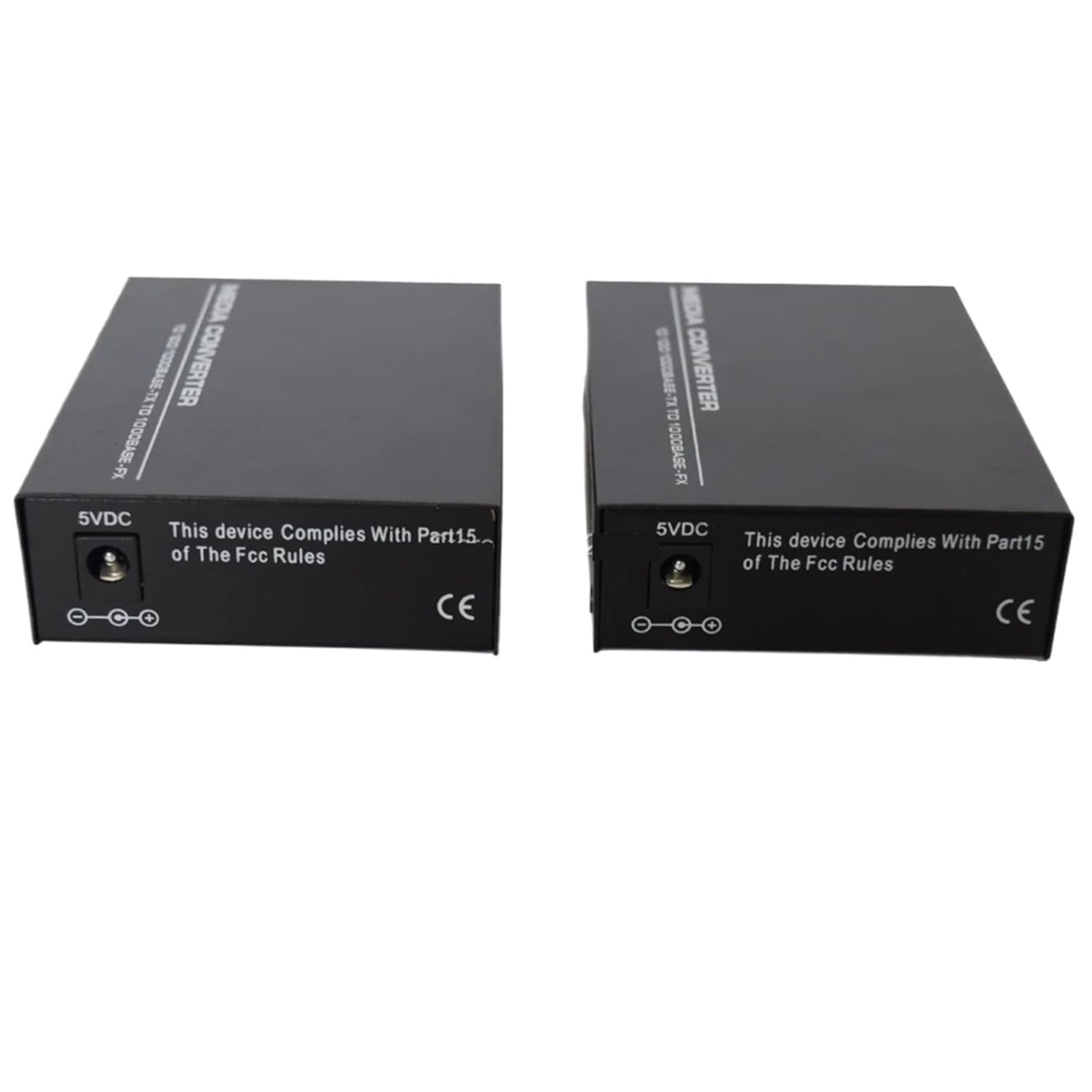

HTB-GS Gigabit Fiber Optical Media Converter, Single Mode, SC Port, 10/100/1000Mbps, 20km, Black, 1 Pair(Normal Plug)

Digital to Analog ConvertersHTB-GS Gigabit Fiber Optical Media Converter, Single Mode, SC Port, 10 Mbps, 100 Mbps, 1000Mbps, 20km, Black, 1 pairFeatures:Provide one SC fiber connector and one UTP connectorFully Complies with IEEE802.3 10Base-T,IEEE802.3u 100Base-TX/IEEE802.3u 100Base-FX,IEEE802.3z 1000Base-FX Standard.Auto-detection of half/full duplex transfer mode for Tx portAuto-negotiation of 10/100/1000Mbps rate and Auto-MDI/MDIX for Tx portProvide switch configuration of half/full duplex transfer mode for Fx portExtend fiber distance up to 20km for single-mode fiber6 LED display for Power, FDX/Col, FX (Link/Act), TX (Link/Act), FX 1000, TX 100Easy-to-view LED indicators provides status to easily monitor network activitySpecifications:StandardIEEE802.310BASE-TEthernetIEEE802.3u100BASE-TX/FXFast-Ethernet IEEE802.3z/ab 1000BASE-FX/TX 100M-Ethernet IEEE802.3x RJ-45PortAuto-MDI/MDIXFiberPortFiberTypeWavelengthSend-PowerSC1310/1550nm20dBm(min.)0dBm(max.)FrequencyOffset±125,000bps(or±100ppm)MTUMorethan9036bytesDimensions(WxDxH)94x71x27mm(Externalpower)InputVoltageDC5V2A(Externalpowerinput:AC100V-AC240V/50-60HZ)OperationTemperature0°C~70°CStoreTemperature-40°C~85°CHumidity5%~95%non-condensingWeight0.3kg/Piece (ExternalPower)Noted:Default with US standard power adapteMini Normal Package includes:1. Ethernet MediaConverter*2pcs (HTB-GS-03 A/B)2. Power Adapter (pls tell us your power adapter , or we'll send default adapter)==========Wireless function : NoHigh-concerned chemical : NoneModel Number : HTB-GS-03-ABColor : BlackConnector : SCPower : External powerMax. Data Transfer Rate : 1000M
